Pilot MPL810 Laser
9-watt class 4 therapy laser (discontinued)
Important Notice
ColdLasers.org does not sell Pilot laser systems. The manufacturer is no longer producing lasers. This page is provided for reference purposes only—for existing owners or those researching the used market.

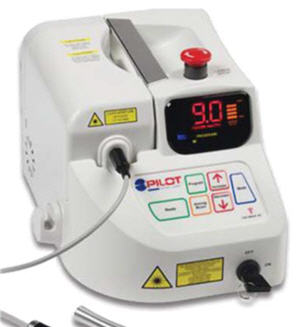

About the Pilot MPL810
The Pilot MPL810 was a budget-friendly 9-watt class 4 laser imported from China. It was marketed as a simple, no-frills alternative to more expensive systems like K-Laser and LightForce.
The manufacturer has since discontinued laser production, meaning no new units are available and factory support is no longer offered. Used units may still appear on the secondary market.
Original Specifications
When available, the Pilot MPL810 was sold for approximately $7,995 with a 2-year warranty.
9,000mW at 810nm. Single wavelength with adjustable power from 100mW to 9,000mW. Continuous wave and fixed 10Hz pulsed mode.
Original Features
LED display with membrane keypad. No touchscreen or complex software—marketed as straightforward operation.
Cordless foot switch for hands-free on/off operation during treatment.
Included 30mm spot size (for joints/muscles) and 20mm spot size (for neurological/vascular). Fiber-optically connected.
Non-removable cable design intended to prevent dirt contamination and melting issues common with detachable connectors.
Under 5.5 lbs—relatively portable for a class 4 system of this power level.
Considerations for Used Buyers
The manufacturer no longer produces lasers. Parts, repairs, and technical support are unavailable from the original source.
Only offers fixed 10Hz pulsing. No programmable frequencies—limiting compared to modern systems with variable pulse rates.
810nm only. No multi-wavelength options for targeting different tissue types or conditions.
Manufactured in China despite some sellers claiming US origin. Quality control and longevity may vary.
Used units may have significant hours on the diode. No way to verify remaining lifespan or output accuracy without testing equipment.
Technical Specifications
100mW to 9,000mW adjustable. GaAlAs semiconductor laser diode.
810nm ± 20nm. Aiming beam: 635–660nm (visible red).
Continuous wave and fixed 10Hz pulsed operation.
5.5"W × 6.5"D × 8.5"H. Weight under 5.5 lbs.
Originally Marketed For
- Pain management
- Inflammation reduction
- Increased blood flow
- Joint/muscular therapy
- Companion pets
- Equine therapy
Looking for Alternatives?
Explore current therapy laser systems with active manufacturer support and warranties.
Browse Our Lasers →ColdLasers.org no longer sells or supports Pilot laser systems. This information is provided for historical reference only. If purchasing used, verify functionality and understand there is no factory support available.
