EVO Laser



Quick Specs
Applications: Horses, dogs and exotic pet protocols.

Current Options:

X2: Dual 810nm/980nm delivers 40j/sec CW and 36j/sec CW
Waveforms: CW, Pulse, Sweep (multi-ste)p w/ adjustable duty cycle
Stock: Yes
Delivery: 3-day shipping standard
Shipping: Included
Warranty: 5 Years on the laser, 1 year on the handpiece
$17,800 to $29,800
This version is in the process of FDA registration so it vet us only.

You might already know BioPhotonica for making the highest quality, most powerful and flexible whole-body pods (the ReGen Pod) and now they are expanding into high performance lasers. Over the years, we have helped dozens of laser companies spec systems for the US market, we work very closely with Biophotonica to spec one of best class-4 laser at any price.

The ReGen Laser's uses their proprietary Stim-Cell™ Technology, which combines high-efficiency wavelengths at very high-power levels combined with proprietary multi-step factory protocols and smart accessories to provide the best balance and performance. Stim-Cell™ Technology leverages decades of research and all the best-practices from the laser therapy market to reach the pinnacle of laser design.

The ReGen Laser from BioPhotonica delivers superior performance to lasers costing 2 or 3 times as much money but what really makes this system stand out is the performance and quality. The fit and finish of the ReGen Laser are best-in-class. These lasers are built to last and the 5-year warranty proves it. ReGen Lasers comes in dual, triple and quad-wavelengths with all systems having 810nm as the primary wavelength so they all have the best penetration depth and ATP production. The secondary wavelengths like 630, 905, 980 and 1064 add more flexibility on top of the base 810nm. They offer up to 60-watt systems and all of them offer some of the lowest cost per watt on the market.

Model
Power / Wavelength

Total Power: 40w
20 W @ 810nm
20 W @ 980nm

Total Power: 60w
20 W @ 810nm
20 W @ 980nm
20 W @ 1064nm

Total Power : 60.2w
20 W @ 810nm
20 W @ 905nm
20 W @ 980nm
200mW @ 635nm

Delivery Rate Rate: 40 J/sec CW
36 J/sec Pulse
Rate: 60 J/sec CW
54 J/sec Pulse
Rate: 60 J/sec CW
54 J/sec Pulse
Typical Dosage 7200 joules in 3 minutes 10,800 joules in 3 minutes 10,800 joules in 3 minutes
Best Application Optimized for deep ATP production plus pain and inflammation control. Higher dosage with 1064nm for even more pain and inflammation control. Perfect for pain clinics. Best for Vet, Equine, and Acupuncture. Maximum flexibility. It does everything well.
Price $17,800
Buy Now
$ 26,800
Buy Now
Coming Soon
$29,800
Buy Now
Coming Soon

*1The SD can deliver 20 joules/sec at 810nm CW AND 20 j/sec CW at 980nm (for optimum pain and inflammation control) OR any combination of wavelengths.

*2The ST is optimized for maximum pain and inflammation control so it can be the best choice for pain center.

*3The SQ is for any practice that want to treat the widest variety of applications with internal protocols. This system does everything well.

Biophotonica has over 20 years of experience in writing and summarizing the best in PBMT , we know that most laser companies don't put much effort into their protocols. In some of the "huge" protocol libraries from other companies, only the name of the protocol changes. They all default to to delivering max power for 10 minutes and no pulsing. Some systems will put the same dosage into an arthritic thumb as the put into a bad hip, defying all logic and therapy standards. The advanced internal library on the ReGen Laser works perfectly with our extended protocol library to set the laser up to get the best result for each condition listed in the library. If you have used another high-end system, then you will really appreciate the effort that went into the ReGen Laser protocols. It has one of the best internal protocol libraries of any high end laser and better protocols deliver superior results.

Fully Adaptive Protocols and Programmable Duty Cycle

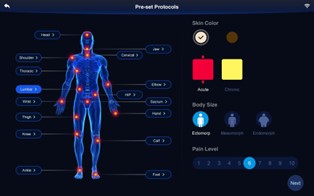

evolaser chronicityThe ReGen Laser follows the best industry practices (like our protocol library) by adapting the treatment parameters to the patient. The setup screen to the left shows how each protocol is adapted based on the patient size, skin color and the chronicity of the condition. In addition to follow the best industry practices, the ReGen Laser system allow for manually over-riding the standards. One of the secrets of the laser industry is the effect of duty-cycle (on/off ratio) on the dosage delivery. Many systems like the LiteForce® use a fixed 50% duty cycle. What this means is that users are paying a very high price to get a 25-watt system (that costs about $30,000) that only puts out 12.5 joules/second anytime they are pulsing the laser. Since you pulse the laser for most application, most users are wasting a huge amount of money because they are confused by the specification and how they change the performance. The ReGen Laser solve this problem by providing users the ability to program the duty cycle. With the ReGen Laser, you can set up to a 99% duty cycle so that means that an ReGen Laser D30 pulsing at 99% will delivers more power (19 joules/second) and save you $16K+ when compared to a LiteForce® system. It makes you wonder why anyone would ever overpay so much.

Superior Emitter and Fiber Design

  Biophtonica EmitterOne of our favorite parts of the system is the emitter and fiber optic cable. It is not a cheap plastic emitter handle or a simplistic machined metal emitter, it is a rubber coated precision-metal emitter that has the feel of a high-end bespoke writing instrument and less like the disposable pen feel you get with other lasers. The emitter has interchangeable heads and pop on and off.   The system also includes a unique design roller ball head that slides over the surface of the skin but does not require the laser to pass thought the roller. This reduces the system losses but more importantly, reduces the need for constant cleaning that you get with a traditional roller ball. Old school roller balls create a constant buildup of dead skin inside the roller ball, which eventually blocks off the laser beam and damages the system. This issue is reduced with the ReGen Laser. The rubber coated emitter handle is more ergonomic than any other design we have seen. This reduces stress on the practitioner and is much more comfortable to hold while also reducing drop damage that often destroys plastic emitters.   The fiber optic cable between the emitter and base is also extra long (about 7 ft.) and more ergonomic than many other class-4 systems. The system uses a compact and flexible 400-micron fiber without excessive armor around the cable. The ReGen laser learns from other company's design failures that use a large diameter fiber that puts more stress on the operator as they are constantly pulling on a heavy cable around as they are treating patients. Larger cables increase the strain on the operator and onto the connectors at the end of the armored cable than therefore increases connector failures.  Many systems with armored cables have an external connector which does allow them they more easily replace the "flawed design", but the external connector is actually the biggest failure point for class 4 lasers. It must be kept spotlessly clean because even one spec of dust at this connector can destroy the laser.  The ReGen laser is a superior design because the critical connector at the end of the fiber is inside the base, keeping it clean and adding to the reliability.

Power

The ReGen Laser sticks to the most established wavelength, 810nm, as the primary wavelength and allows secondary wavelengths for 980nm on the dual and adds 905nm and 625nm to the quad. Although these wavelength have a shallower depth of penetration, they are great for supplemental therapies. For animals with hoof and blood related problems, the 625nm wavelength is preferred and when you want a wavelength where most of the energy is converted into heat, the 980nm can be used for increasing circulation and extra pain control. This system give practitioners full access so they can optimize their treatment for a wide variety of applications. The EVO laser provides for a very high 3-dimensional power density that many experts think is the key to faster therapeutic outcomes. Although lower power devices can deliver the same total energy level given enough time, they can never reach the same power density of the ReGen Laser class-4 systems.

Speed

For some practices, minimizing patient treatment times while still delivering great results is a high priority. For these types of practices, the 40 watt ReGen Laser provides a cost effective solution. Practitioners can deliver 7200 joules in just 3 minutes so this device gives you the option to have extremely short treatment times AND deliver very high dosages for maximum impact. Because the ReGen Laser has the programmable duty cycle (on/off ratio), you can deliver 6480 joules pulsing in 3 minutes with pulsing. This totally crushes other systems that have a fixed duty cycle of 50% or less. With the ReGen Laser, you can create custom protocols that include high duty cycle pulsing. We often recommend pulsing in the 4 - 40 Hz but at a 90% duty cycle. This give practitioners both pulsing and higher dosage. Very few other systems on the market allow this control at any price.

Future-Proof

Like all Biophotonica systems, the ReGen Laser has optional WiFi connectivity. This means that the system can continue to evolve and improve even after you buy it.  As technology advances, so does your ReGen Laser. The system allows for both software and protocol updates. This makes the system more Future-proof than most other class 4 lasers. The fit and finish on the laser is excellent and the 5 year warranty lets you know that is system will be a work-horse for many years to come.

Smart

The ReGen Laser would be one of our first recommendations for any user who wants a high dosage therapy laser with maximum flexibility, great quality and great support. This system comes with a 30-day money back guarantee.



Optional Accessories


Emitters

Image Emitter Price
Standard Emitter Standard - The standard emitter is adjustable from 1/2 to 1-1/2 inch treatment area and open cage design reduces heating Included
Standard Emitter Sealedl Lens - This emitter is best for on hair/fur as the end of the emitter is sealed. Included
Standard Emitter Large 4-Inch Hybrid Roller -This large emitter is mainly for hands-free therapies but can also be used to for higher delivery rates into dark pigment skin, fur or hair.

Included



Crushing the Competition

The ReGen Laser design elevates the best technology seen in the Italian-made Eltech K-Laser®(Compare ReGen Laser to K-laser). It also has several big technical advantages when compared to a LightForce® and Summas® lasers like adjustable duty cycle (on/off ratio when pulsing) and multi-step pulsing ( Compare ReGen Laser to LightForce).

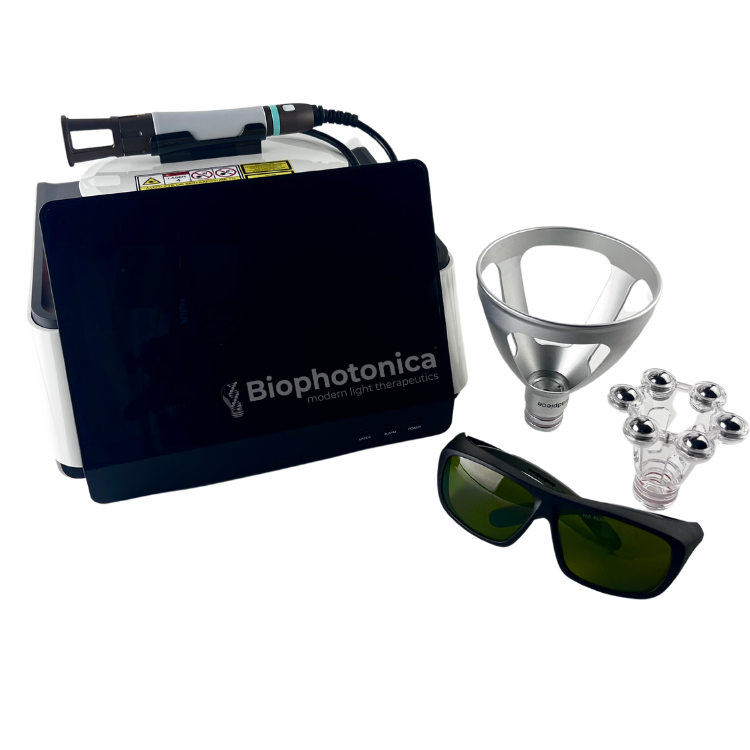

All 3 systems include the laser controller, standard emitter, hard case, 2 pairs of glasses, manuals and training. The price also include shipping.

This system can be sold to professionals and for home use.

Comparison of class 4 lasers*

Product Infra Red Power Interface Emitter Output Price

ReGen XD

ReGen XT

ReGen XQ

40w

60w

60.2w

10.1 inch touch

Precision Rubber/aluminum

CW, Pulse, Multi- pulse

$17,800

$24,800

$29,800

Pilot Laser 9,000mW@810nm LED with membrane keypad Aluminium cylinder CW and 1 Pulse Option $7,995

EVO S9

EVO D30

EVO Q27

EVO FX

9W@810

20W@810/980

Quadwave 27.2W

Triwave 45W

7.2 inch touch Metal standoff CW, Pulse, Multi- pulse

$8,950

$12,995

$14,995

$24,995

Apollo
Desktop 5000
5,000mW@810nm LCD Smooth glass direct emitter CW Only $6,999

LiteCure

LiteForce Ex

25,000mW non-adjustable blend of 80% 980nm & 20% 810nm 8 inch Touch Roller ball CW and Pulse $25,000 and Up?

LiteCure

LiteForce Exp

40,000mW non-adjustable blend of 80% 980nm & 20% 810nm 12 inch Touch Roller ball CW and Pulse $35,000?

Eltech K-Laser™ Cube 3



15,000 mW ISP
12,000mW CW -
100mW @ 635nm 12,000mW 810nm
12,000mW 980nm
4.8 inch Touch Metal standoff can be used unattended CW and Pulse $19,950

Eltech K-Laser™ Cube 4

20,000 mW ISP
15,000mW CW -
100mW @ 635nm
12,000mW 810nm
20,000mW 910nm
12,000mW 980nm

4.8 inch Touch Metal standoff can be used unattended Most protocols are based on Pulsing but can do CW

$27,500






Detailed Specifications

ReGen Laser Systems Specs
Touch Screen 10.1-inch full color
Internal Library Searchable by condition, Customized
Custom Protocols Yes
Warranty 5 Years
Included Accessories Heavy-Duty Carrying Case, Safety Goggles (2 pairs), Therapy Handpiece, and full documentation
System Controller
Weight 12 lbs / 25 Kg
Dimensions 11” (W) X 11” (L) X 8”(H)
Operating Voltage 110/220 VAC, 5A, 50/60 Hz With universal power input
Emitter
Laser Peak Power XD: 40W (40,000mW)
XT: 60W (60,000mW)
XQ: 60.2W (60,200mW)
Laser Class 4
Fiber Optic Connection 400 microns with a SMA905 connectors
Operating Parameters
Emitter GaAlAs Diode Laser
Operating Mode Continuous Wave (CW), Pulsing (Frequency) Single, or Sweep Pulsing
Pulse Duration 10µs-3s
Repetition Rate 0.2Hz-20KHz
Aiming Beam Red Diode Laser, Wavelength: 635nm, Power:1-3mW
